Dragline cable, SC IP 67 PushPull V14 metal, SC IP 67 PushPull V14 metal, 9 µm, PUR, 25 m

Produkt ID 1449420250
Download datablad Produktdownloads
Tilbehør 2 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Версия
Dragline cable, SC IP 67 PushPull V14 metal, SC IP 67 PushPull V14 metal, 9 µm, PUR, 25 m
Заказ №
1449420250
Typ
IE-FSMD2UE0025MSDESDEX
GTIN (EAN)
4050118258516
Qty.
1 Styk

Dimensions and weights

Длина
25 m
Length (inches)
984,252 inch
Net weight
898,08 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

General standards

Connector standard
IEC 61076-3-117 Var. 14
IEC 61754-24

Standards

Standardní konektor
IEC 61076-3-117 Var. 14
IEC 61754-24

Fibre-optic

Attenuation
≤0.4 dB/km at 1310 nm
Fibre type
Singlemode
OS 2
Insertion loss
≤ 0.5 dB
Return loss (attenuation)
≥ 40 dB

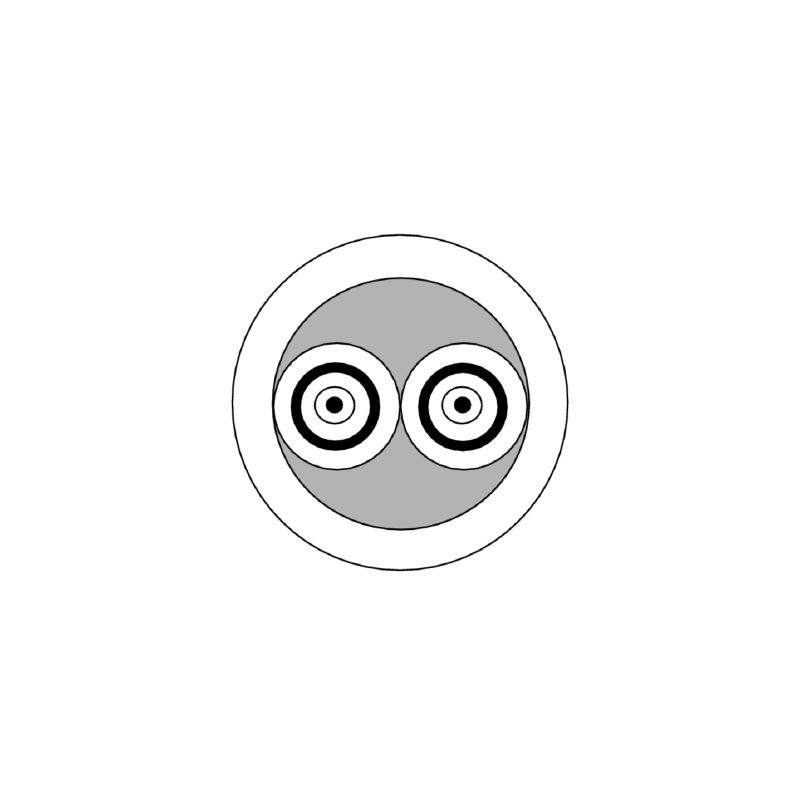

Cable structure

Colore della guaina
black
Manteldurchmesser
6 mm
Materiale rivestimento
PUR
Primary coating
245 µm
Диаметр сердечника
9 µm
케이블 레이아웃
Break-out dragline

Mechanical and material properties of cable

Bending cycles
100,000
Halogen
No
Min. bending radius, once only
25 mm
Min. bending radius, repetitive
77 mm

Plug

Plug left
SC, IP67, male contact, straight, PushPull V14, plug, Zinc diecast, unshielded
Plug right
SC, IP67, male contact, straight, PushPull V14, plug, Zinc diecast, unshielded

Plug, left

Plug left
SC, IP67, male contact, straight, PushPull V14, plug, Zinc diecast, unshielded

Plug, right

Plug right
SC, IP67, male contact, straight, PushPull V14, plug, Zinc diecast, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
