FE Contact - CH20M
FE contact
Functional reliability - either fully integrated or simply mounted

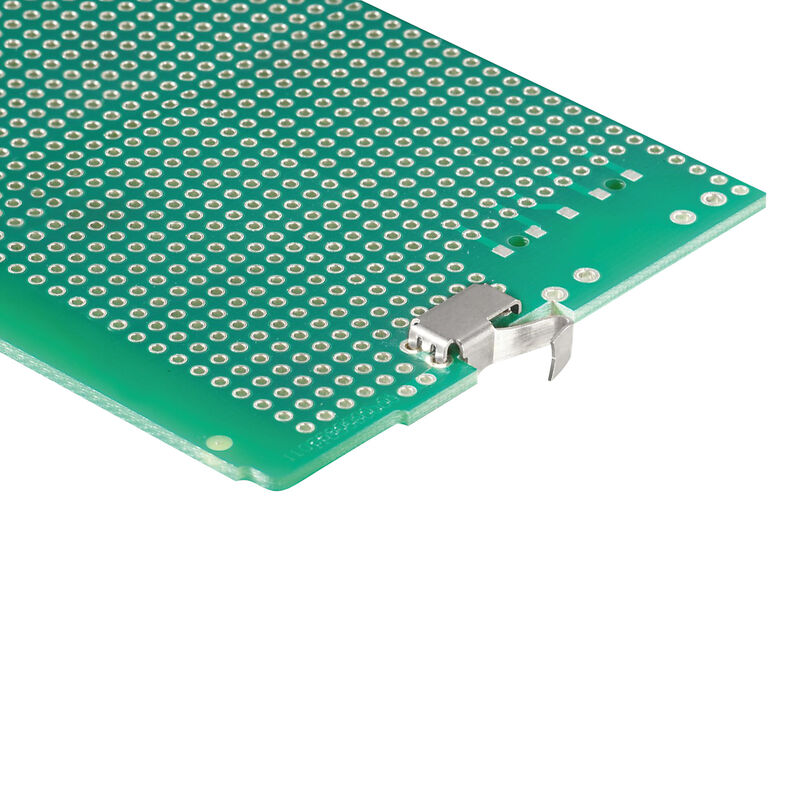

The optional "CH20M FE" connection optimally protects your system with a mounting rail contact for the functional earth.
Functional reliability - either fully integrated or simply mounted
The optional "CH20M FE" connection optimally protects your system with a mounting rail contact for the functional earth.
- The functional earth contact pre-assembled in the 6 mm housing enables permanent and reliable connection of electronic shields for the electronic circuit to the mounting rail (e.g. "CH20M6 BP 4P-4P FE BK", 1164650000)
- A functional earth contact, which can be processed fully automatically using the reflow method together with the male connectors and an optional bus contact, is available for housings from 12.5 to 67.5 mm. The position of the PCB in the housing specifies the pin length of 1.5 mm / 3.2 mm
-
Ürün No.:1264240000Ambalaj birimi:750 PC
Electronics housings, Accessories, THT/THR solder connection, 5.00 mm, Number of poles: 1, Solder pin length (l): 3.2 mm, tinned, Silver grey, Tape
-
Ürün No.:1189370000Ambalaj birimi:750 PC
Electronics housings, Accessories, THT/THR solder connection, 5.00 mm, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, Silver grey, Tape
