HDC HA 16 MP 17-32
HDC HA 16 MP 17-32
HDC HA 16 MP 17-32
HDC HA 16 MP 17-32

HDC HA 16 MP 17-32

, Male, 250 V, 16 A, Number of poles: 16, PUSH IN, Installation size: 5

Ürün No. 3124570000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Signal contact Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202
Certificate No. (cURus)
E310075

General ordering data

Version
, Male, 250 V, 16 A, Number of poles: 16, PUSH IN, Installation size: 5
Order No.
3124570000
Type
HDC HA 16 MP 17-32
GTIN (EAN)
4099987277624
Qty.
1 adet

Dimensions and weights

Height
35 mm
Height (inches)
1,378 inch
Width
23 mm
Width (inches)
0,906 inch
Length
72 mm
Length (inches)
2,835 inch
Net weight
14 g

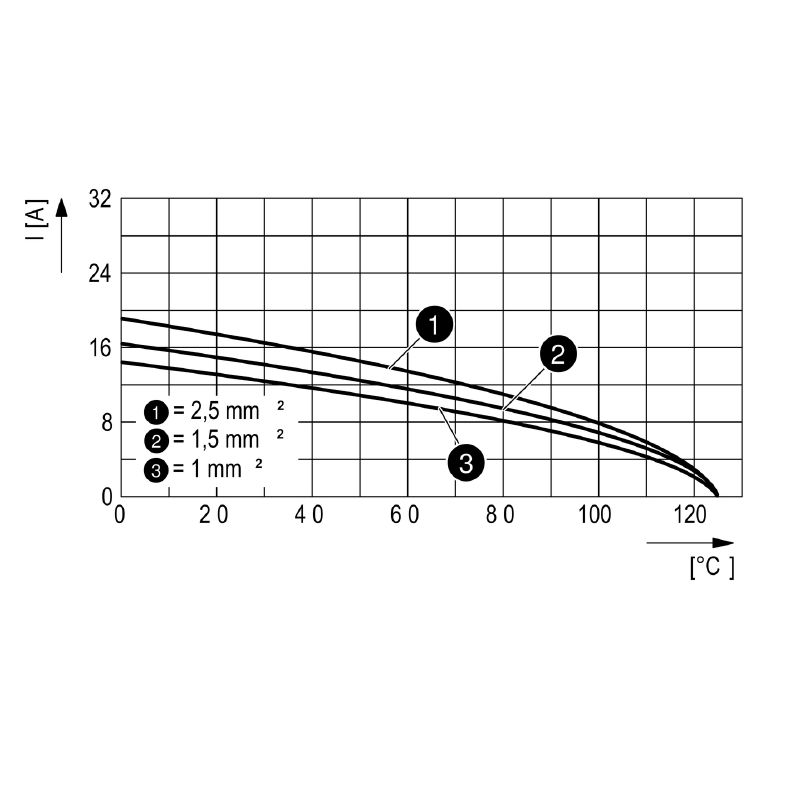

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Total length base
72 mm
Width
23 mm

General data

Basic material
Polycarbonate
BG
5
Colour
Light Grey
Corriente nominal (DIN EN 61984)
16 A
Installation size
5
Insulating material
PC
Jelérintkezők száma
0
Nombres de contacts de puissance
16
Number of poles
16
Plugging cycles
≥ 500
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Plugging cycles, tin
≥ 500
Pollution severity
3
Rated impulse voltage (DIN EN 61984)
4 kV
Rated voltage (DIN EN 61984)
250 V
Series
HA
Surge voltage category
III
Type
Male
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Protection degree
IP20

Connection data PE

Connection type PE
PUSH IN connection
Tightening torque, max. PE connection
1 Nm
Tightening torque, min. PE connection
0,5 Nm

Power contact

Stripping length according to the cable diameter
  • Stripping length:
    8 mm
Момент затяжки, макс. по сечению проводника
  • Conductor cross-section, min.:
    0,14 mm²
  • Conductor cross-section, max.:
    2,5 mm²
  • Tightening torque, max.:
    1 Nm

Signal contact

Rated impulse voltage (DIN EN 61984), signal
4 kV

Version

BG
5
przekrój przyłącza przewodu AWG, min.
AWG 14
Rozmiar instalacji
5
Type of connection
PUSH IN
Основной материал
Polycarbonate
Поперечное сечение соединительного провода, макс.
0,14 mm²
Поперечное сечение соединительного провода, мин.
2,5 mm²
결선 단면규격 AWG, 최대
AWG 26
탈피 길이, 정격 결선
8 mm

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
