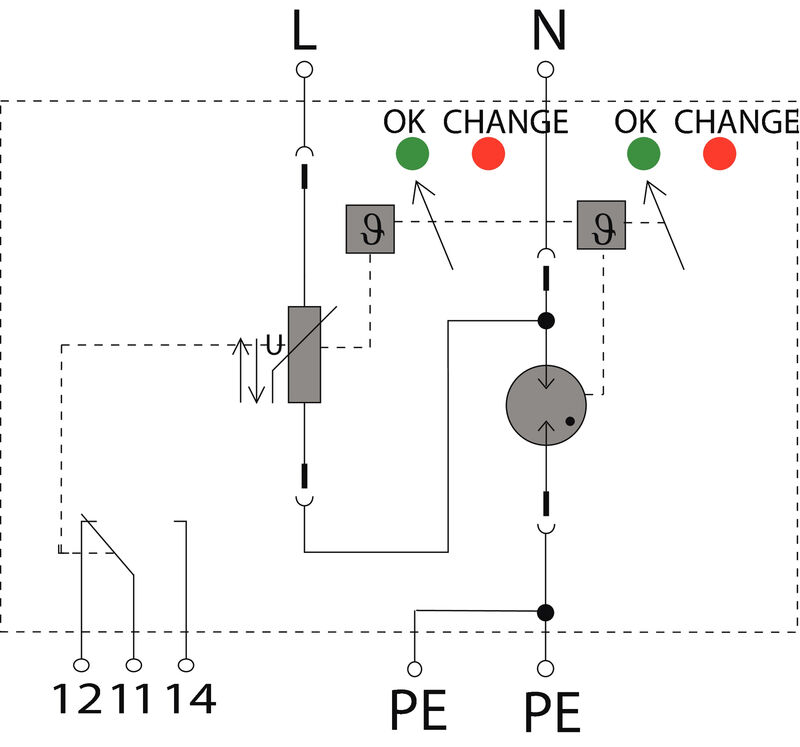

VPU AC I 1+1 R 300/12.5

Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN-C, TN-C-S, TN-S, TT, TN, IT with N, IT without N

Item No. 2591490000

Properties

General ordering data

Version	Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN-C, TN-C-S, TN-S, TT, TN, IT with N, IT without N
Order No.	2591490000
Type	VPU AC I 1+1 R 300/12.5
GTIN (EAN)	4050118599459
Qty.	1 items

Dimensions and weights

Depth	91 mm
Depth (inches)	3.583 inch
Height	104.5 mm
Height (inches)	4.114 inch
Width	36 mm
Width (inches)	1.417 inch
Net weight	38 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C
Humidity	5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.	85 °C
Rated Voltage U_N	240 V
VPR (N-PE)	1,200 V
MCOV (L-PE)	300 V
MCOV (L/N-PE)	300 V
MCOV (N-PE)	305 V
SCCR	150 kA
I_n	20 kA
Category	SPD TYPE 1CA
Ambient temperature (operational), min.	-40 °C
Certificate No. (cURus)	E3542610000
MODE	L-N L-G N-G
VPR (L-N)	900 V
VPR (L-PE)	1,000 V
Voltage type	AC

Connection data, remote alert

Connection type	PUSH IN
Cross-section for connected wire, solid core, max.	1.5 mm²
Cross-section for connected wire, solid core, min.	0.14 mm²
Stripping length	8 mm

General data

Colour	black orange blue
Design	Installation housing; 2TE Insta IP 20
Operating altitude	≤ 4000 m
Optical function display	green = OK; red = arrester is defective - replace
Protection degree	IP20 in installed state
Rail	TS 35
Segment	Power distribution
UL 94 flammability rating	V-0
Version	Surge protection with remote contact

Insulation coordination acc. to EN 50178

Pollution severity	2
Surge voltage category	III

Rated data IEC / EN

Discharge current I_max (8/20µs) N-PE	50 kA
Discharge current I_max (8/20µs) wire-PE	50 kA
Discharge current I_n (8/20µs) N-PE	50 kA
Discharge current I_n (8/20µs) wire-PE	20 kA
Energy coordination (≤10 m)	Type I Type II Type III
Follow-on current extinguishing capability I_fi	Not available due for technical reasons
Frequency range, max.	60 Hz
Frequency range, min.	50 Hz
Fuse	No Fuse neccessary ≤315 A gG 250 A gG @50 kA Isccr 315 A gG @25 kA Isccr
Leakage current at U_n	1 µA
Lightning test current I_imp(10/350 µs) (L-PE)	12.5 kA
Lightning test current, I_imp (10/350 µs) (N-PE)	50 kA
Low voltage network	Single-phase TN-C TN-C-S TN-S TT TN IT with N IT without N
Mains voltage	230 V / 400 V
Max. continuous voltage, Uc (AC)	300 V
Max. continuous voltage, Uc (N-PE)	305 V
Number of poles	2
Protection level U_p at I_N (L/N-PE)	≤ 1.5 kV
Protection level U_p at I_N (N-PE)	≤ 1.5 kV
Rated voltage (AC)	230 V
Requirements category acc. to IEC 61643-11	Type I Type II
Requirements class, acc. to EN 61643-11	T1 T2
Response time	≤ 25 ns ≤ 100 ns
Short-circuit current rating I_SCCR	50 kA
Signalling contact	250 V 1A 1CO
Standards	IEC61643-11, EN61643-11 UL 1449
Temporary surge voltage (over-voltage) - TOV	337 V
Voltage type	AC

Connection data

Stripping length	15 mm
Wire connection method	Screw connection
Type of connection	Screw connection
Stripping length, rated connection	15 mm
Tightening torque, min.	2 Nm
Tightening torque, max.	4.5 Nm
Clamping range, rated connection	16 mm²
Clamping range, min.	4 mm²
Clamping range, max.	35 mm²
Wire cross-section, solid, min.	1.5 mm²
Wire cross-section, solid, max.	35 mm²
Wire connection cross section, finely stranded, min.	1.5 mm²
Wire connection cross section, finely stranded, max.	25 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection cross-section, stranded, max.	35 mm²

Electrical data

Voltage type

General data

Number of poles	2
Protection degree	IP20 in installed state
Colour	black orange blue

Guarantee

Time interval

5 years

Important note

Product information

Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018). For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V
